Introduction

Transformers play a crucial role in power transmission and distribution, enabling efficient energy transfer over long distances. In this blog post, we'll explore what transformers are, how they work, the different types available, essential formulas, and some example questions to solidify your understanding.

What is a Transformer?

A transformer is an electrical device that changes the voltage of alternating current (AC) electricity. It either increases (steps up) or decreases (steps down) voltage levels. Transformers are essential in power grids, electrical appliances, and electronic devices, where they ensure safe and efficient voltage levels.

Working Principle of a Transformer

The working principle of a transformer is based on Faraday's Law of Electromagnetic Induction. When alternating current flows through the primary coil, it generates a magnetic field, inducing a voltage in the secondary coil due to the changing magnetic flux. Transformers operate only with AC, as a varying magnetic field is essential for induction.

Key Concepts in Transformer Operation:

- Mutual Induction: Voltage is induced in the secondary winding due to the changing magnetic field from the primary winding.

- Core Material: The core (typically made of laminated iron) enhances the magnetic field between the windings, improving efficiency.

Types of Transformers

Transformers are categorized based on functionality, construction, and usage. Here are some common types:

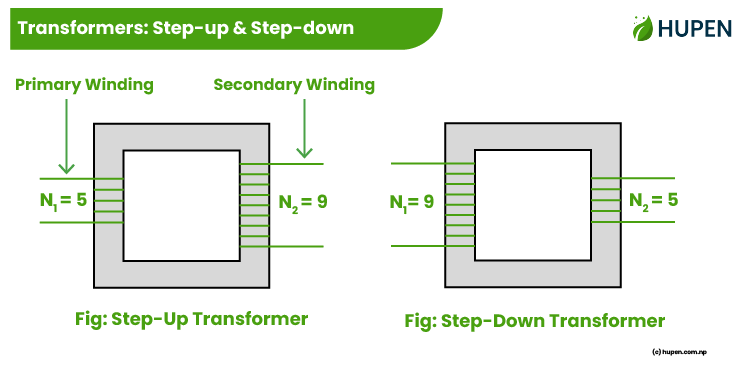

1. Step-Up Transformer: Increases the voltage from primary to secondary winding.

2. Step-Down Transformer: Decreases the voltage from primary to secondary winding.

3. Power Transformer: Used in transmission networks for high-voltage applications.

4. Distribution Transformer: Provides the final voltage transformation in a power distribution grid.

5. Isolation Transformer: Used to isolate sections of a circuit for safety and to avoid grounding issues.

6. Instrument Transformer: Includes current and potential transformers, which measure high current or voltage in power systems.

Important Transformer Formulas

1. Voltage Transformation Ratio:

   \(\frac{V_p}{V_s} = \frac{N_p}{N_s}\)

   Where:

   - \( V_p \): Primary voltage

   - \( V_s \): Secondary voltage

   - \( N_p \): Number of turns in the primary winding

   - \( N_s \): Number of turns in the secondary winding

2. Current Transformation Ratio:

   \(\frac{I_s}{I_p} = \frac{N_p}{N_s}\)

   Where:

   - \( I_p \): Primary current

   - \( I_s \): Secondary current

3. Power in an Ideal Transformer:

   \(  P_p = P_s\)

   \(V_p \times I_p = V_s \times I_s\)

   Where \( P_p \) and \( P_s \) represent power in primary and secondary windings.

4. Efficiency of a Transformer:

   \(\text{Efficiency} (\eta) = \frac{P_{\text{out}}}{P_{\text{in}}} \times 100\%\)

   Where:

   - \( P_{\text{out}} \): Output power

   - \( P_{\text{in}} \): Input power

Example Questions and Solutions

Question 1:

A step-up transformer has a primary voltage of 220V and a turns ratio of 1:5. What is the secondary voltage?

Solution:

Using the formula:

\(\frac{V_p}{V_s} = \frac{N_p}{N_s}\)

Given \( V_p = 220V \), \( N_p:N_s = 1:5 \):

\(V_s = V_p \times \frac{N_s}{N_p} = 220V \times 5 = 1100V\)

Thus, the secondary voltage \( V_s \) is 1100V.

Question 2:

A transformer has 100 turns in the primary winding and 400 turns in the secondary winding. If the primary current is 10A, what is the secondary current?

Solution:

Using the current transformation ratio:

\(\frac{I_s}{I_p} = \frac{N_p}{N_s}\)

Given \( I_p = 10A \), \( N_p = 100 \), \( N_s = 400 \):

\(I_s = I_p \times \frac{N_p}{N_s} = 10A \times \frac{100}{400} = 2.5A\)

So, the secondary current \( I_s \) is 2.5A.

Conclusion

Transformers are essential devices in electrical engineering, facilitating efficient power transmission and safe voltage levels across different systems. Understanding their principles, types, and relevant calculations is critical for anyone working with electrical circuits and power systems.
